AKKUTEC for more safety and reliability

UPS systems with batteries as energy storage provide the consumer with uninterrupted power in case of mains disturbances. Our DC UPS systems of the AKKUTEC series operate in standby parallel mode. During mains operation, the DC source supplies the load and the battery simultaneously. The battery is kept fully charged. If the power supply fails, the battery buffers until it has reached its deep discharge limit. This can be a few minutes or a few hours. The battery management integrated in our AKKUTEC devices protects the battery and makes the system safe and highly available.

Highlights of the AKKUTEC series at a glance

Primary switched-mode power supply with I/U charging characteristics
active power factor correction (PFC)
Microcontroller-supported lead battery management
RS232 for monitoring and parameterisation
Temperature tracking of the charging voltage by external sensor
Primary switched-mode power supply with I/U charging characteristics

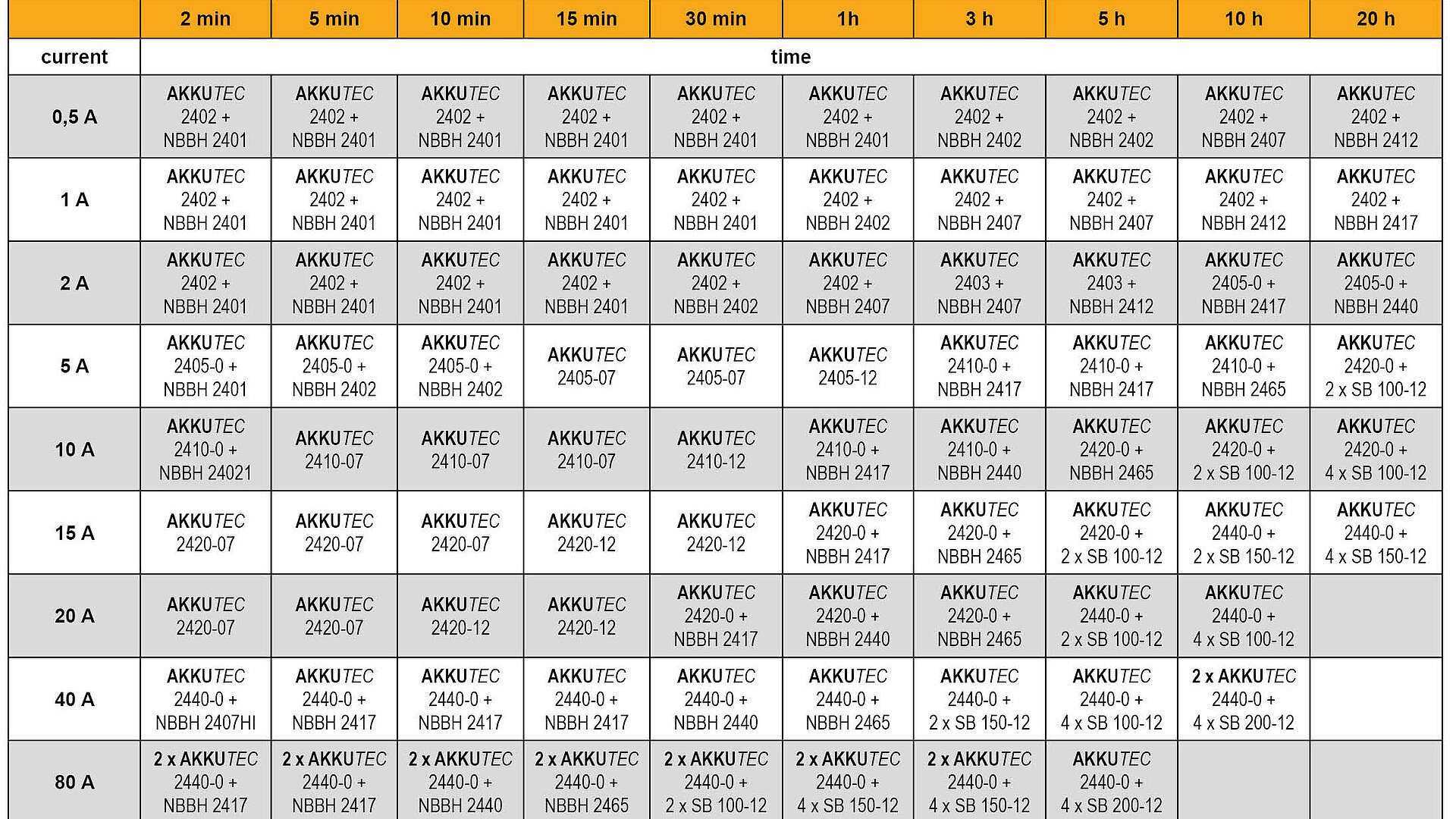

Dimensioning Table

With the dimensioning table, you can find the best suitable AKKUTEC as well as the battery module for your application

Download

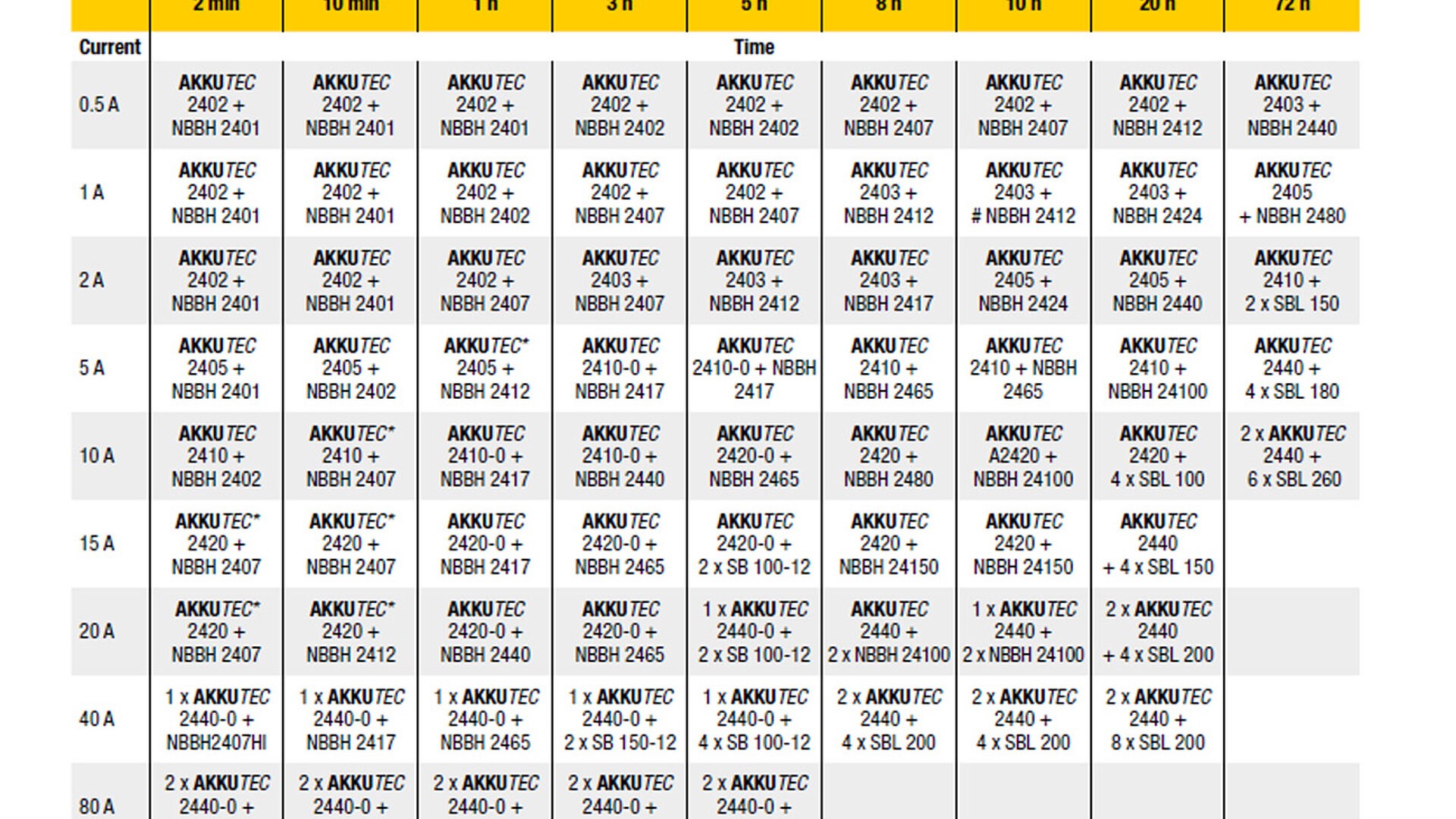

Dimensioning table

Selection Table

Login / Register

pdf
61 KB

The AKKUTEC series

input voltage 115…230 V AC
output voltage 24 V DC
output current 2 A

AKKUTEC 2403 DC

input voltage 24 V DC
output voltage 24 V DC
output current 3,7 A

input voltage 230 V AC
output voltage 24 V DC
output current 2,85 A

AKKUTEC 2403 VdS

input voltage 115...230 V AC
output voltage 24 V DC
output current 3 A

DC USV mit Batterien

input voltage 115 - 230 V AC
output voltage 24 V DC
output current 5 A

input voltage 230 V
output voltage 24 V
output current 10 A

AKKUTEC 2412 VdS

input voltage 230 V AC
output voltage 24 V DC
output current 12 A

AKKUTEC 2420 1ph

input voltage 230 V AC
output voltage 24 V
output current 22 A

AKKUTEC 19-2420 1ph

input voltage 230 V AC
output voltage 24 V DC
output current 22 A

AKKUTEC 2420 3 ph

input voltage 3 x 400 - 500 V AC
output voltage 24 V DC
output current 20 A

input voltage 3 x 400 V ... 500 V AC
output voltage 24 V DC
output current 40 A DC

input voltage 115...230 V AC
output voltage 12 V DC
output current 2,85 A DC

input voltage 230 V AC
output voltage 12 V DC
output current 8 A

input voltage 115...230 V AC
output voltage 12 V DC
output current 20 A

input voltage 115 ... 230 V AC
output voltage 48 V DC
output current 1,1 A DC

input voltage 115 ... 230 V AC
output voltage 48 V DC
output current 2,5 A

input voltage 230 V AC
output voltage 48 V DC
output current 6 A

input voltage 230 V AC
output voltage 48 V DC
output current 10 A

Battery extension modules

24 V
1,2 Ah

24 V
2,2 Ah

24 V
7 Ah

24 V
12 Ah

24 V
17 Ah

24 V
24 Ah

24 V
40 Ah

24 V
65 Ah

24 V
100 Ah

12 V
2 Ah

12 V
4 Ah

12 V
14 Ah

12 V
24 Ah

12 V
34 Ah

12 V
52 Ah
