UPS management software for your DC UPS system

With our management software solutions we enable you to monitor and parameterize your DC UPS system. No matter whether remotely via remote access, in connection with a J. Schneider gateway, or directly on site via the USB/RS485 interface. Easy parameterization allows you to adapt our devices to your requirements.



With the shutdown function, a safe and targeted shutdown of the system is simple and easy.

Further features like the IPC function or the display of the average temperature as well as the used battery life complete the comfort of the software.

Advantages of our software solutions

  • Shutdown of the UPS system is performed in a controlled manner
  • Simple parameterization of the UPS
  • Safety through monitoring

UPS Software Solutions for our DC UPS Systems

TECControl Software

The TEC Control software offers monitoring and parameterization in one software. Through different user levels it is possible to enable defined rights.

Parameterize the "IPC function" according to your needs for an automatic restart.

The TEC Control software offers monitoring and parameterisation in one software package
The TECControl software permanently monitors the grid and the charging status of the energy storage of the UPS system.

IPC based function

In the event of a power failure, the connected IPC shuts down in a controlled manner according to the set time. If the mains returns during the shutdown, the IPC does not notice the mains return.

For this reason, the UPS system switches off the output voltage for e.g. 5 seconds (time can be set) and then switches it on again. In this way, the IPC recognizes the return of the mains and automatically starts up again.





paraTEC und paraTEC VdS Software

With the paraTEC software the parameterization of our DC UPS systems is possible and thus the optimal adaptation of the power supplies to the customer's needs.



The paraTEC VdS software can be used for all AKKUTEC VdS power supplies. With this special software, which was developed for the management of the AKKUTEC VdS UPS systems, the status display of voltage, current and error is additionally carried out.



The following functions are included

  • Monitoring/Supervision
  • Read out errors
  • Parameterization of battery capacity
  • Parameterization of internal resistance
  • Perform internal resistance measurement
  • Fuse case switch on/off

paraTEC UCC Software

Our UCC-TEC is a charger specially designed for charging ultracapacitor modules. At the same time it is also able to charge batteries. With the special paraTEC UCC software you can switch between the two charging modes and parameterize the device

[Translate to English:] Die Überwachungsfunkion der paraTEC UCC Software
[Translate to English:] Mit der PC Software paraTEC-UCC ist es möglich den Lader (UCC-TEC) zu parametrieren und zwischen den beiden Ladebetrieben umzuschalten.

TECBus Manager

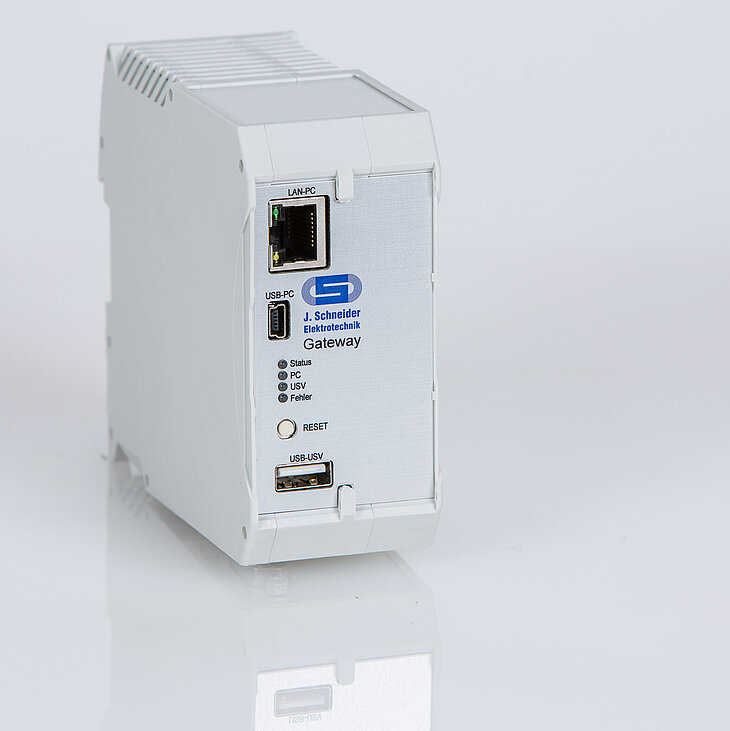

The TECBus Manager is used for monitoring and parameterization of a UPS or an entire master-slave or redundant system with several UPS systems. The software requires the Gateway in combination.

[Translate to English:] TECBus Manager dient der Überwachung und Parametrierung einer USV
[Translate to English:] TECBus Manager – passend für AKKUTEC 2410, AKKUTEC 2420, AKKUTEC 2440

The following functions are included

  • Surveillance/Monitoring
  • View error table
  • Parameterization of voltages, error messages discharge time etc.
  • Parameterization of Master/Slave systems
  • Parameterization of redundant systems
  • Configure alarms

Software for all AC UPS systems

Special software solutions are used for the configuration and monitoring of AC UPS systems. You can find these in the latest version:



Download the software for all AC UPS systems

Click here for the request: We will be happy to advise you
