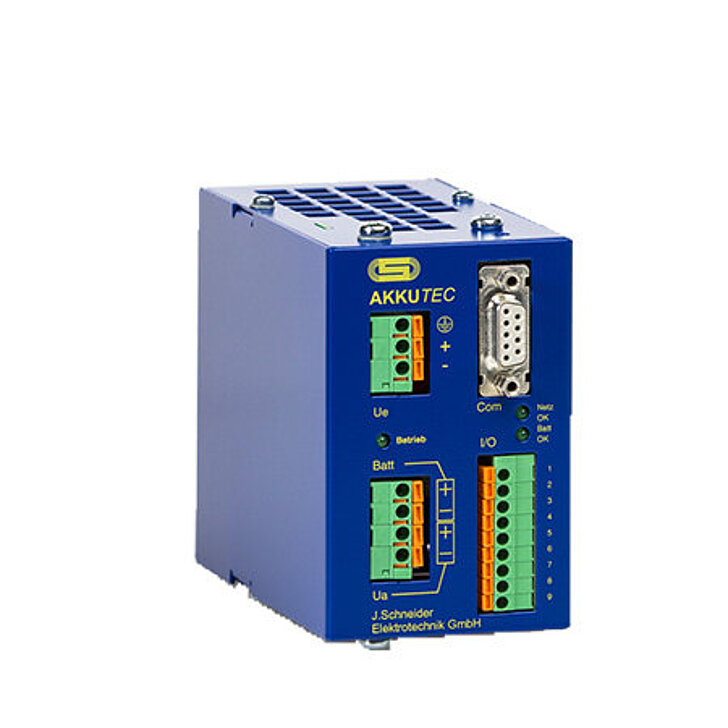

AKKUTEC 2403 DC
  • Switched primary, switched power supply with I/V charging characteristic
  • Active power factor correction (PFC)
  • Microcontroller-based battery management
  • Temperature compensation for charging voltage by means of external sensor module (optional module)
Art.-no. : NBUA0523G01003

Technical Data

Input voltage 24 V DC
Output voltage 24 V DC
Nominal output current 2,85 A
Dimensions (H x W x D) 92,5 mm x 60 mm x 116 mm
Weight 0,6 kg

Downloads

01_AKKUTEC 2403 DC_e
Datasheet
Login / Register
  • pdf
  • 114 KB
03_AKKUTEC 2703 DC_e
3D-Modell
Login / Register
  • zip
  • 2 MB
04_AKKUTEC 2403 DC_e
Eplan-Makro
Login / Register
  • edz
  • 1 MB
02_AKKUTEC 2403 DC_e
Manual
Login / Register
  • pdf
  • 1 MB
03_AKKUTEC 2703 DC_e
3D-Modell
Login / Register
  • zip
  • 2 MB
04_AKKUTEC 2403 DC_e
Eplan-Makro
Login / Register
  • edz
  • 1 MB

Battery modules

NBBH 2401
  • 24 V
  • 1,2 Ah
NBBH 2412
  • 24 V
  • 12 Ah
NBBH 2417
  • 24 V
  • 17 Ah
NBBH 2440
  • 24 V
  • 40 Ah

Options

Gateway
  • Ethernet connection for AKKUTEC and
  • C-TEC devices
Temperature sensor MTIAQ
  • For battery voltage tracking for optimum charging voltage
  • for AKKUTEC 2402/2403, AKKUTEC 2403 VdS, AKKUTEC 2405, AKKUTEC 2412 VdS serial
IPC Function
  • for a controlled process stop
  • in connection with a C-TEC or AKKUTEC
  • and the TECControl Software

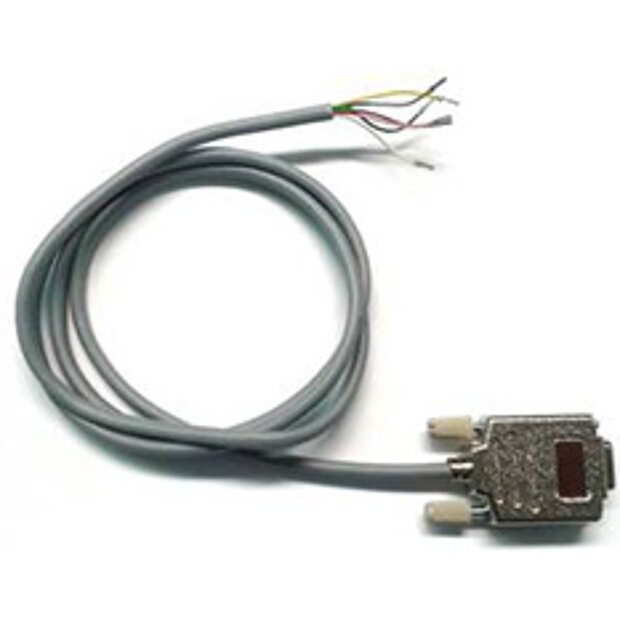

interface cable
  • cable to use the Shutdown Software TECControl
