• Battery charger system with I/U charging characteristics
  • Micro controller-based battery management
  • Temperature compensation for charging voltage by means of external sensor module (optional module)
  • USB interface with appropriate driver unit and TECControl Software of J. Schneider, message contacts may be controlled and a shut down/re-start can be effected
Art.-no. : NBPA0616G01006

Technical Data

Nominal input voltage 230 V AC
Frequency 47 ... 63, Hz
Nominal output voltage / Nominal output current 12 V DC / 8A
Dimensions (H x W x D) 160 x 75 x 150 mm
Weight ca. 1,6 kg

Device Versions

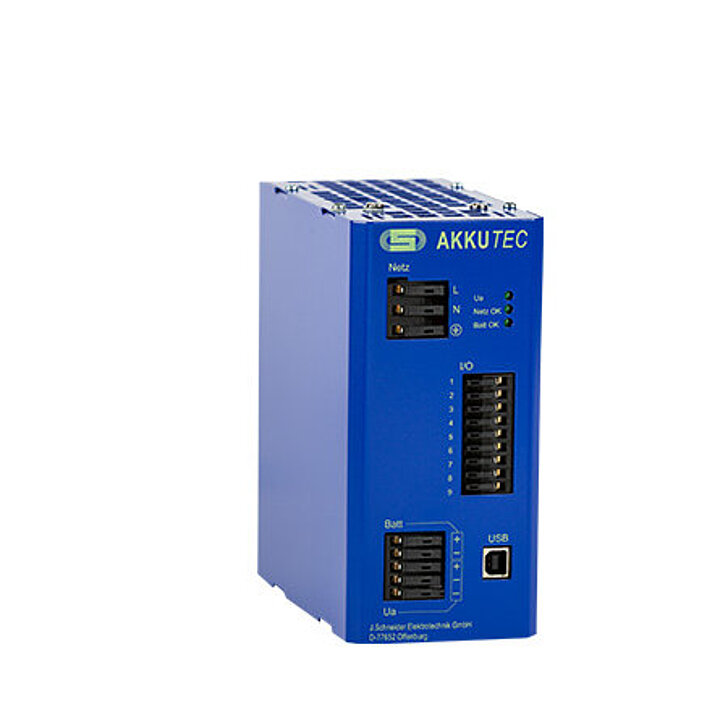

AKKUTEC 1208-0

without battery

for PB-battery, maintenance free

Buffer time dependent on battery

Dimensions: 160 mm x  75 mm x 150 mm

Weight: ca. 1,0 kg


Article-Number: NBPA0616G01006

AKKUTEC 1208-14

with 14 Ah battery

PB-battery locked, maintenance free

Buffer time: 80 minutes at 100% load

Dimensions: 256 x 340x 183 mm

Weight: 6,5 kg


Article-Number: NBPA0616G01006M13

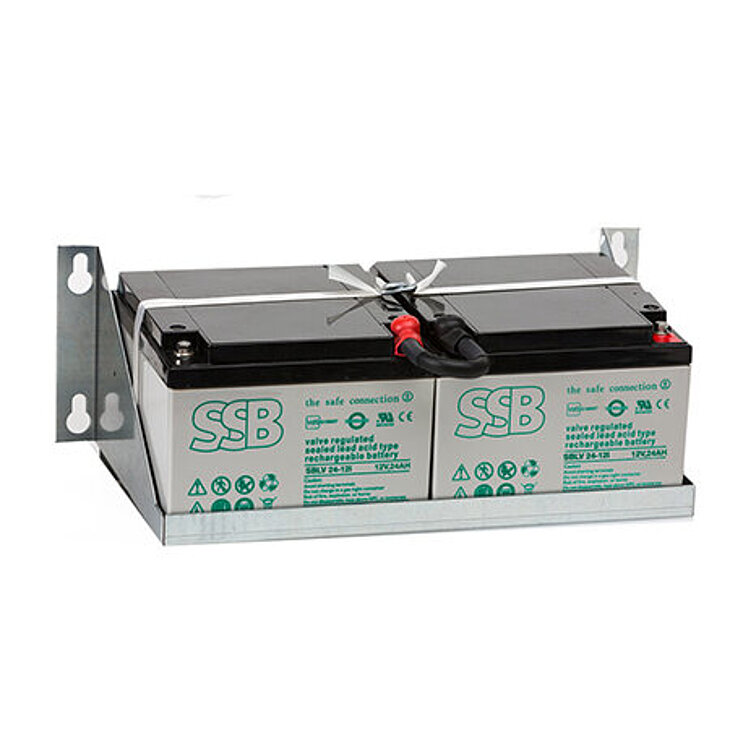

AKKUTEC 1208-24

with 24 Ah battery

PB-battery locked, maintenance free

Buffer time: 120 minutes at 100% load

Dimensions: 256 x 340 x 183 mm

Weight: 9,1 kg


Article-Number: NBPA0616G01006M13
