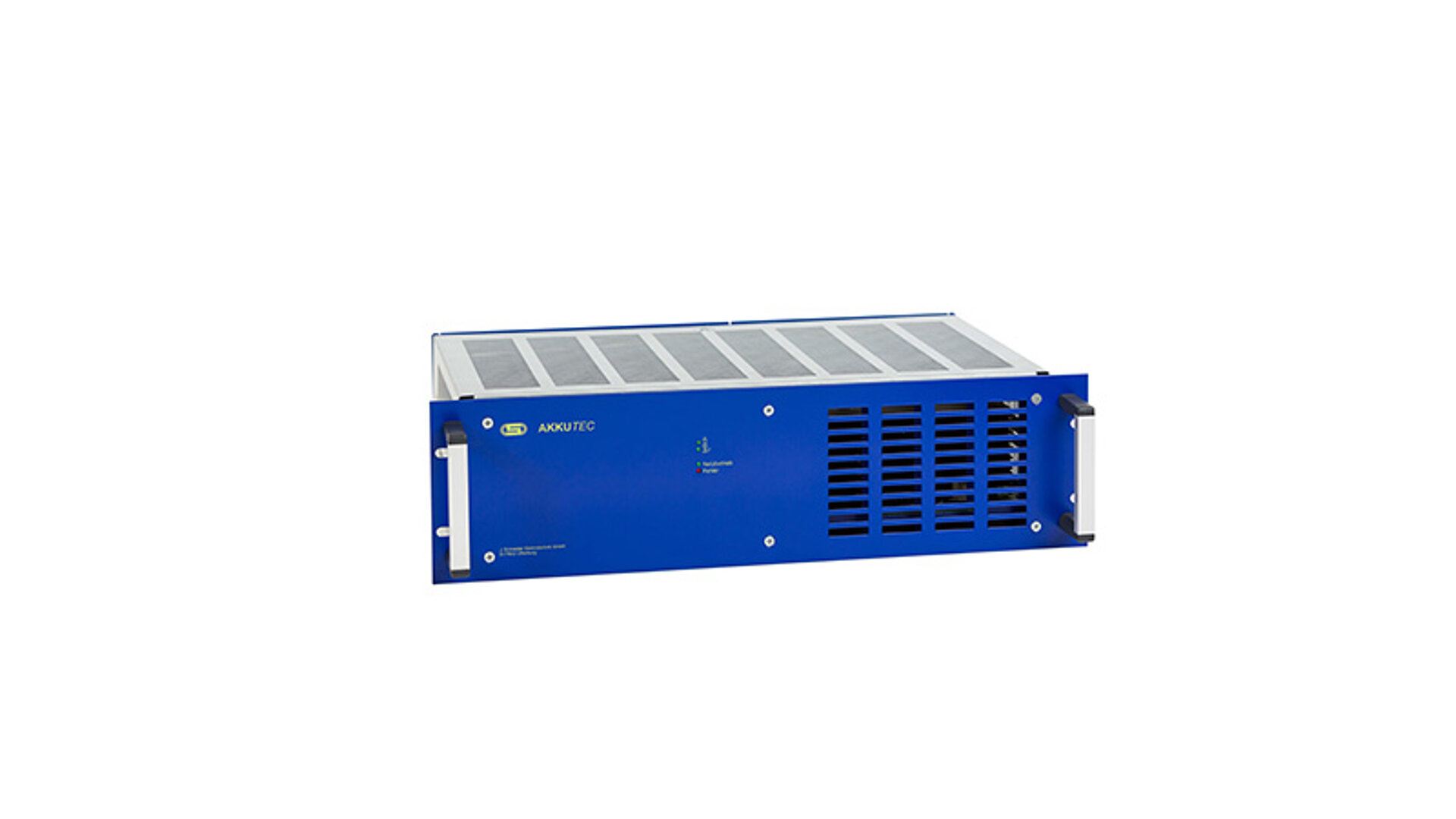

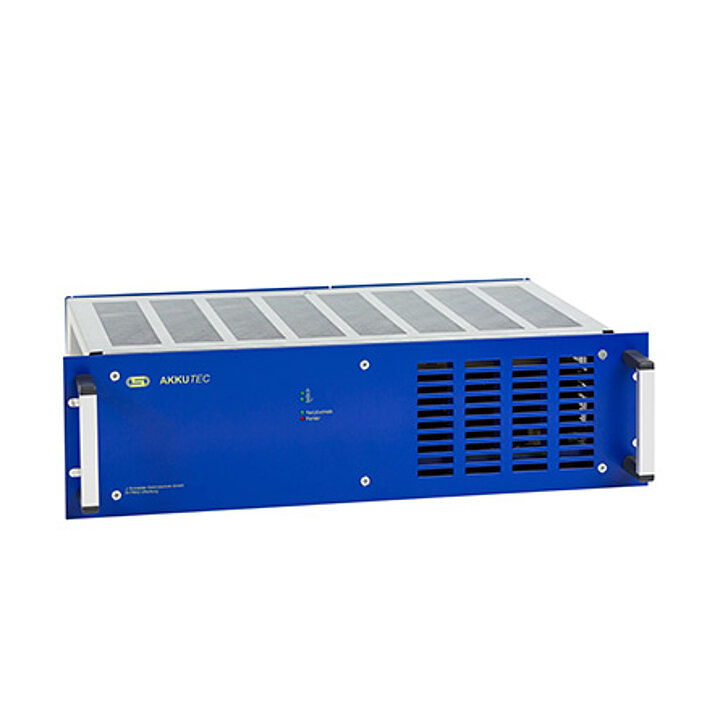

AKKUTEC 19-2420 1ph
  • Switched primary, switched power supply with I/V charging characteristic
  • Active power factor correction (PFC)
  • Microcontroller-based battery management
  • Temperature compensation for charging voltage by means of external sensor module (optional module)
  • Display and control panel for switch cupboard door installation or surface mounting (option)
Art.-no. : NBPRL33G1M...

Technical Data

Nominal input voltage 230 V AC +15% -10%
Frequency 50/60 Hz
Nominal output voltage / Nominal output current 24 V DC / 20 A
Dimensions (H x W x D) 19“ 3HE 84TE
Weight 3,6 kg

Device Versions

AKKUTEC ­19-2420 1ph - 0

without battery

For PB-battery, maintenance free

Buffer time dependent on battery

Dimensions: 19“ 3HE 84TE

Weight: 6,6 kg



Article-Number: NBPRL33G1M04

­

AKKUTEC 19-2420 1ph - 07

with 7 Ah battery

PB-battery locked, maintenance free

Buffer time: 5 minutes at 100% load

Dimensions: 132 x 482,6 x 244 mm

Weight: 13,0 kg



Article-Number: NBPRL33G1M05

AKKUTEC 19-2420 1ph - 12

with 12 Ah battery

PB-battery locked, maintenance free

Buffer time: 12 minutes at 100% load

Dimensions: 132 x 482,6 x 244 mm

Weight: 15,2 kg



Article-Number: NBPRL33G1M06
