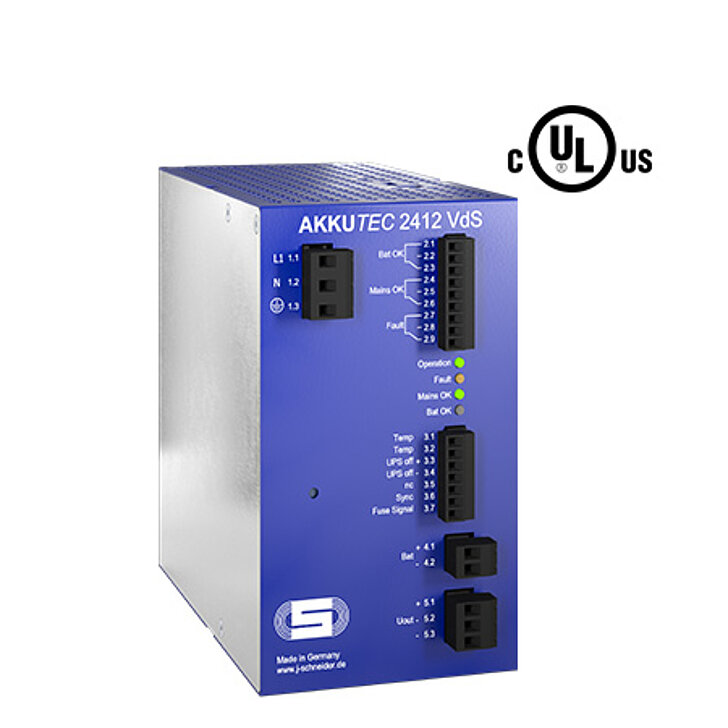

AKKUTEC 2412 VdS
  • Primary clocked switching power supply with I/U loading characteristic
  • Active power factor correction (PFC)
  • Micro-controller supported battery management
  • Temperature adjustment of the charging voltage by external sensor
  • Battery test via battery internal resistance measurement
Art.-no. : NBPA0812G01002

Technical Data

Mains voltage 230 VAC
Frequency 47 ... 63 Hz
Nominal output voltage / Nominal output current 24V DC / 12A
Dimensions (H x W x D) 155 x 95 x 183 mm
Weight 1,5 kg
