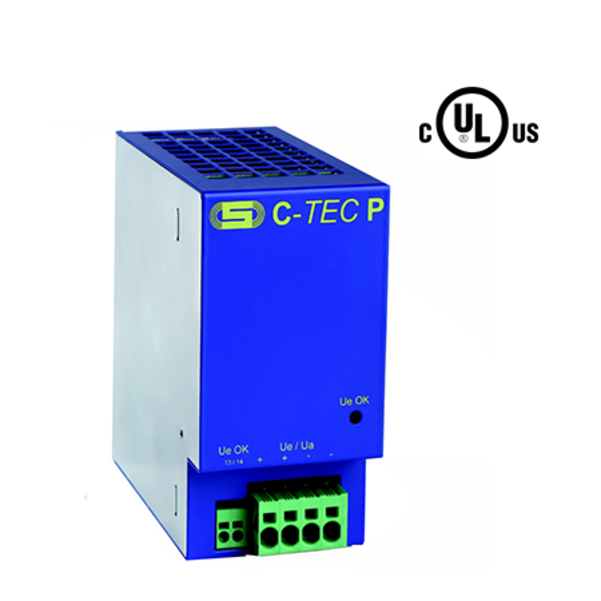

C-TEC 2425 P

Maintenance-free due to durable ultra capacitors
Microcontroller based charging and discharging of the ultracapacitors
Inputvoltage-signal via potential-free contact and LED
Short overload possible
Vibration secured wiring via spring loaded plugs
Wide working temperature range -40°C till 60°C

Art.-no. : NCPA1301G10001

Technical Data

Energy 1,2 kJ
in 22 V DC ± 10 %
output voltage in back-up model 19 ... 25,5 V
max. nominal output current 25 A DC
dimensions (H x B x T) 123 x 65 x 145
weight 0,8 kg
