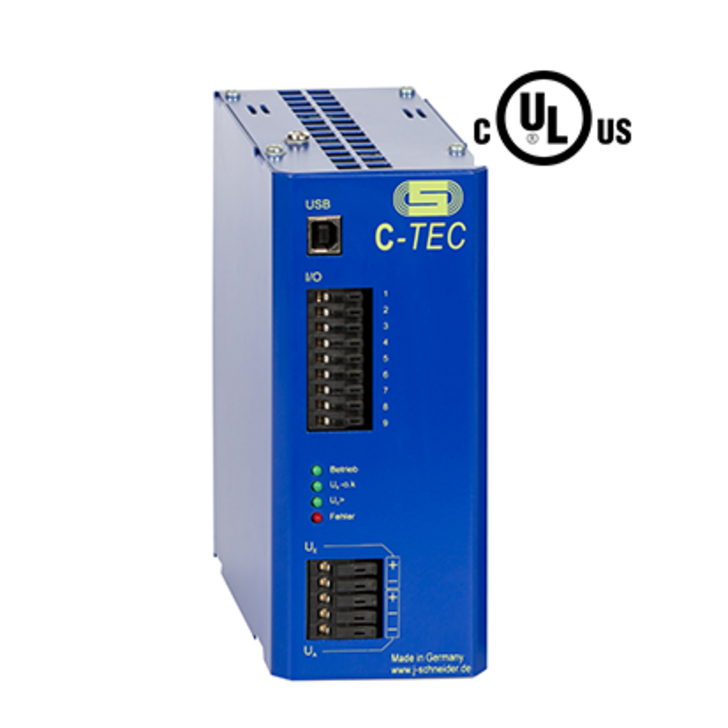

C-TEC 2410 2 kJ

Maintenance-free due to long-life ultracapacitors

Microcontroller-supported charging and discharging of the ultracapacitors

Operating and charging status monitoring via potential-free contacts and LEDs

Capacity can be extended by external capacitor modules

"Ue-o.k." Message via USB

Maintenance-free due to long-life ultracapacitors

Microcontroller-supported charging and discharging of the ultracapacitors

Operating and charging status monitoring via potential-free contacts and LEDs

Capacity can be extended by external capacitor modules

"Ue-o.k." Message via USB

Art.-no. : NCPA0609G01002

Technical Data

energy 2 kJ
nominal input voltage 12 V DC / 24 V DC ± 12,5% automatische Erkennung
nominal output voltage in buffer operation 11,2 V DC / 23,5 V DC ± 2%
max. nominal output current 10 A
dimensions (h x w x d) 165 x 70 x 138 mm
weight 1,3 kg
