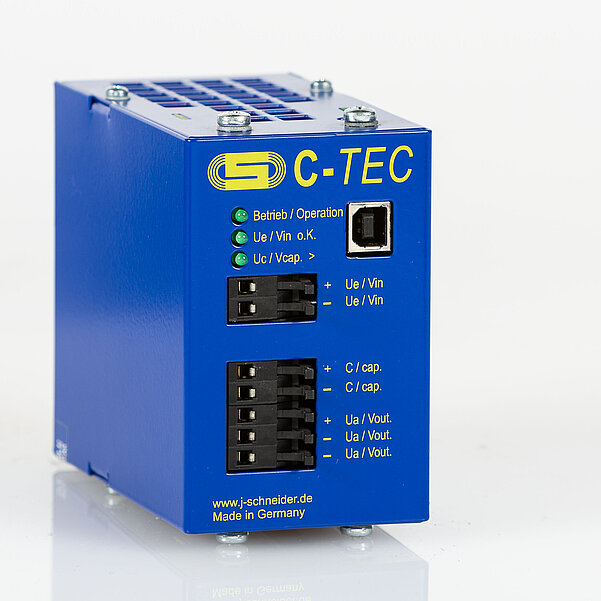

C-TEC 2403 USB

maintenance-free due to long-life ultracapacitors

microcontroller-supported charging and discharging of the ultracapacitors

operating and charging status monitoring via potential-free contacts and LEDs

vapacity can be extended by external capacitor modules

"Ue-o.k." Message via USB

Art.-no. : NCPA0727G20001

Technical Data

energy 1,5 kJ
nominal input voltage 24 V DC -1,2 % / +10 % (SELV/PELV)
nominal output voltage in buffer operation 23,0 V DC ±2 %
nominal output current 3 A
dimensions (h x w x e) 92,5 x 60 x 116 mm
weight (kg) 0,6 kg
