Technical Data
| input voltage | 24 V DC -1,2 % / +15 % (SELV/PELV) |
| energy | 0,7 or 1,5 kJ |
| output voltage in back-up mode | 23,0 V DC ±2 % |
| nominal output current | 3 A |
| dimensions (h x w x d) | 100 x 60 x 126 mm |
| weight | 0,6 kg |

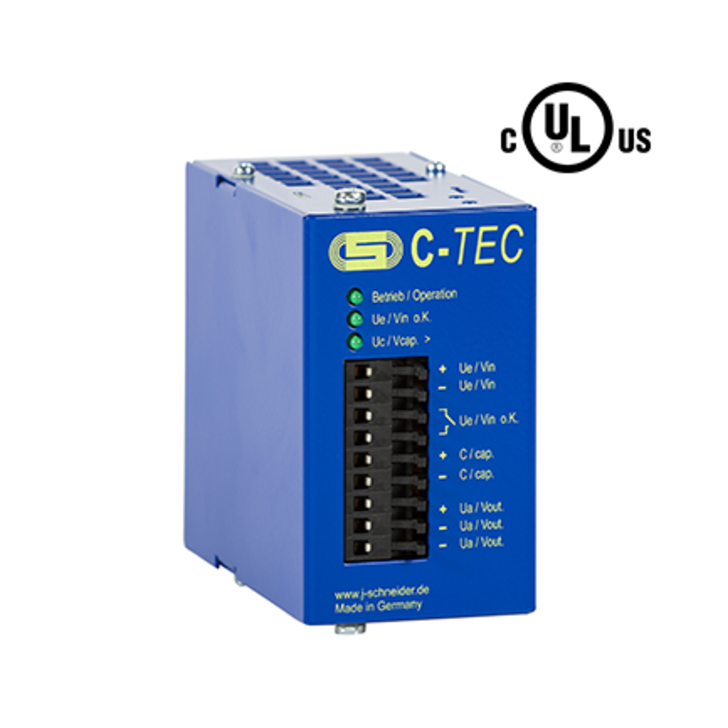

C-TEC 2403
Maintenance-free due to long-life ultracapacitors Low wiring effort due to the integration of the energy storage device Microcontroller-supported charging and discharging of the ultracapacitors Mains monitoring via potential-free contact and LED Vibration-proof wiring due to spring-loaded technology |
Wide temperature range -40 °C to 60 °C
Art.-no. : NCPA0727G01***
