Technische Daten
| energy | 600 J |
| nominal input voltage | 110 V AC / 230 V AC +15 % /-10 % |
| nominal output voltage in buffer operation | 23,3 V DC ±2 % |
| nominal output current | 1 A |
| peak current | 10 A |
| dimensions (h x w x d) | 91 x 106 x 62 mm |
| weight | 0,3 kg |

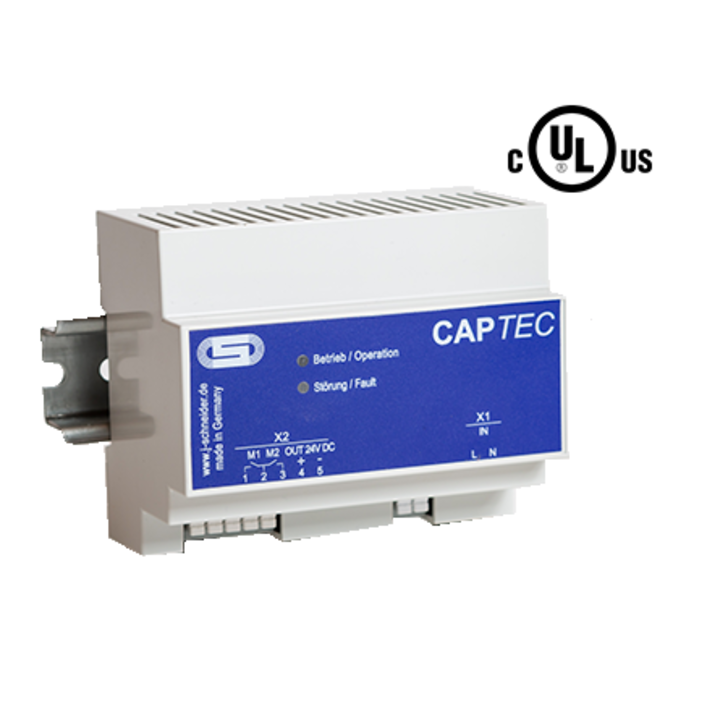

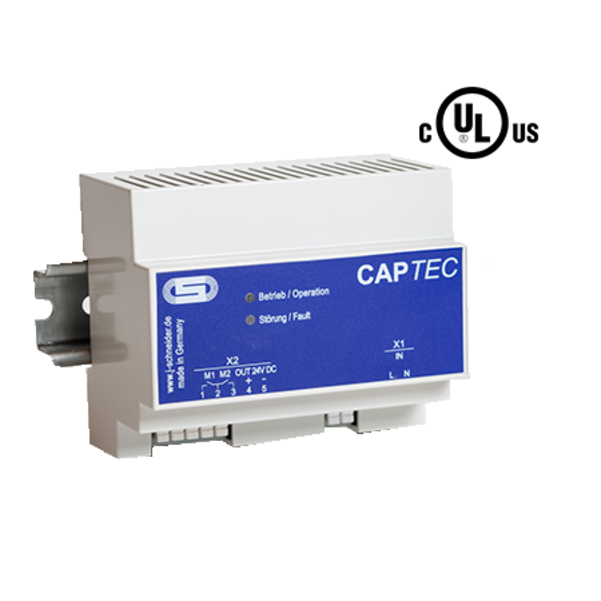

AC CAPTEC 2401
Regulated power supply with safe isolation
Wide input voltage range 80 - 264 V AC
Wide temperature range -40°C - 60°C
Maintenance-free due to long-life ultracapacitors
Microcontroller-supported charging and discharging of ultracapacitors
Operating and charging status monitoring via LEDs and signal contacts
Art.-no. : NCPA1906G01001
