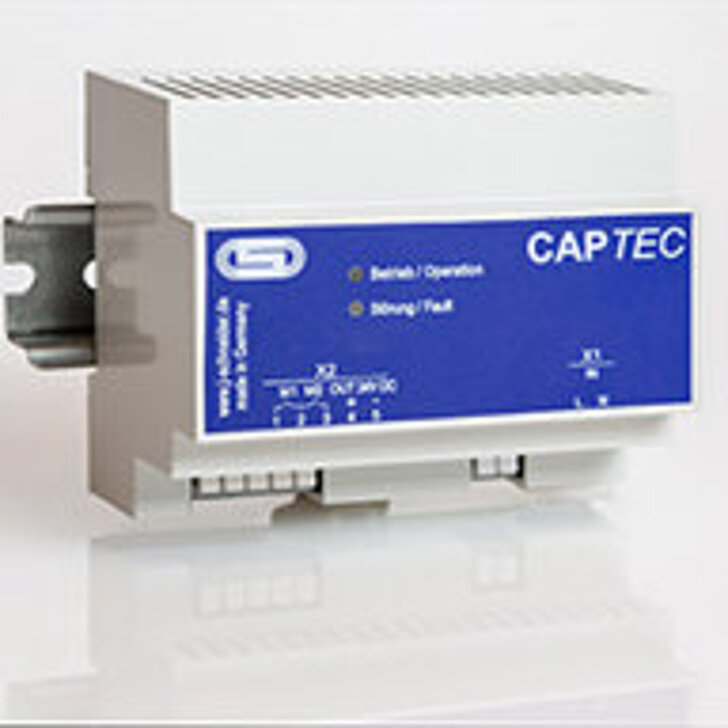

AC CAPTEC 1202

Regulated power supply with safe isolation

Wide input voltage range 80 - 264 V AC

Wide temperature range -40°C - 60°C

Maintenance-free due to long-life ultracapacitors

Microcontroller-supported charging and discharging of ultracapacitors

Operating and charging status monitoring via LEDs and signal contacts

Art.-no. : NCPA1906G10001

Technical Data

energy 600 J
nominal input voltage 110 V AC / 230 V AC +15 % /-10 %
nominal output voltage in buffer operation 11,2 V DC ±2 %
nominal output current 2 A
peak current 10 A
dimensions (h x w x d) 91 x 106 x 62 mm
weight 0,3 kg
