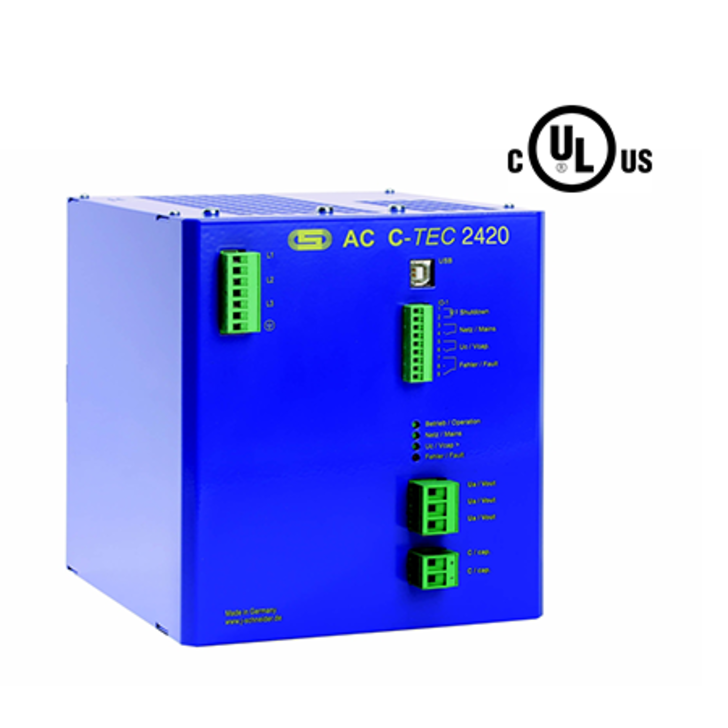

AC C-TEC 2420 8 kJ

Maintenance-free due to long-life ultracapacitors

Low wiring effort due to the integration of the energy storage

Microcontroller-supported charging and discharging of the ultracapacitors

Mains monitoring via potential-free contact and LED

Vibration-proof wiring due to spring-loaded technology

Wide temperature range -40 °C to 60 °C

Art.-no. : NCPA0746G01003

Technical Data

energy 8 kJ
nominal input voltage 400 V AC -15% / 500 V AC +10%
output voltage in back-up mode 23,2 V DC ± 2,0 %
nominal output current 20 A DC
dimensions (h x w x d) 192,5 x 170 x 198 mm
weight 3,5 kg
