Technical Data
| energy | 13,4 kJ |
| input voltage | 115 V AC -26,1 % / 230 V AC +15 % |
| SELV/PELV nach EN 60204-1 | |
| output voltage in back-up operation | 23,5 V DC ± 5 % |
| nominal current | 10 A |
| dimensions (h x w x d) | 163 x 189 x 138 mm |
| weight | 3,0 kg |

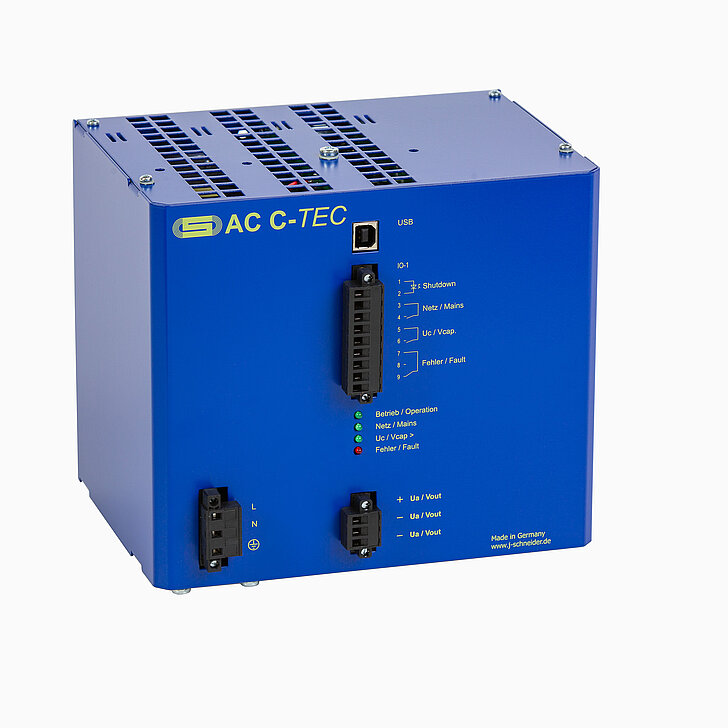

AC C-TEC 2410 13,4 kJ
Maintenance-free due to long-life ultracapacitors
Low wiring effort due to the integration of the energy storage
Microcontroller-supported charging and discharging of the ultracapacitors
Mains monitoring via potential-free contact and LED
Vibration-proof wiring due to spring-loaded technology
Wide temperature range -20 °C to 50 °C
Art.-no. : NCPA1430G01001
