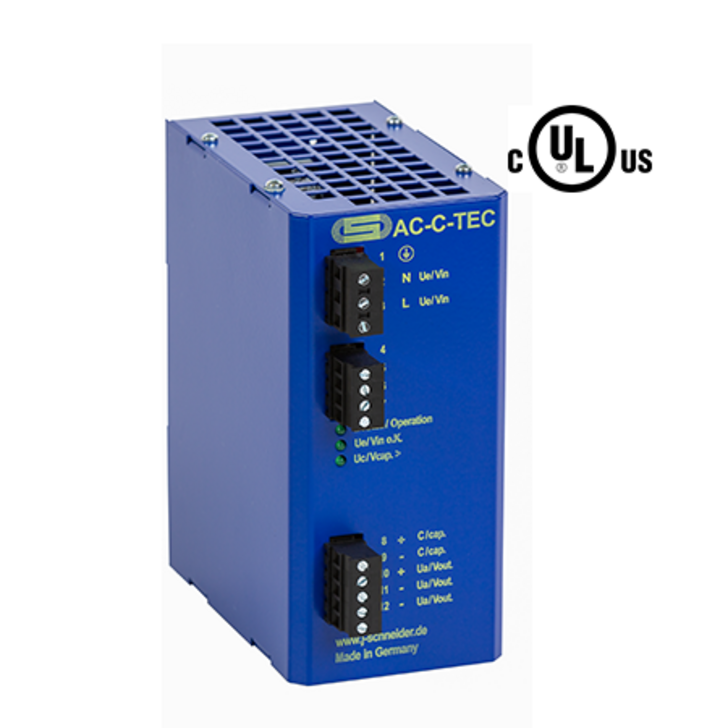

AC C-TEC 1203

Maintenance-free due to long-life ultracapacitors

Low wiring effort due to the integration of power supply unit and energy storage device

Microcontroller-supported charging and discharging of the ultracapacitors

Operating and charging status monitoring via potential-free contacts and LEDs

Wide temperature range -40 °C to 60 °C

Art.-no. : NCPA0724G10002

Technical Daten

energy 1 kJ
nominal input voltage 115-230 V AC
nominal output voltage in buffer operation 11,5 V DC ±2 %
nominal output current 3 A
dimensions (h x w x d) 153 x 72 x 130 mm
weight 0,9 kg
