Technical Data
| nominal input voltage | 3x 400 V AC ± 15 % |
| nominal output voltage | 384 V DC |
| at 0°C | 450 V DC |
| at 30°C | 434 V DC |
| nominal output current | 2 A DC |
| dimensions | 230 x 125 x 255 mm |
| weight | 7 kg |

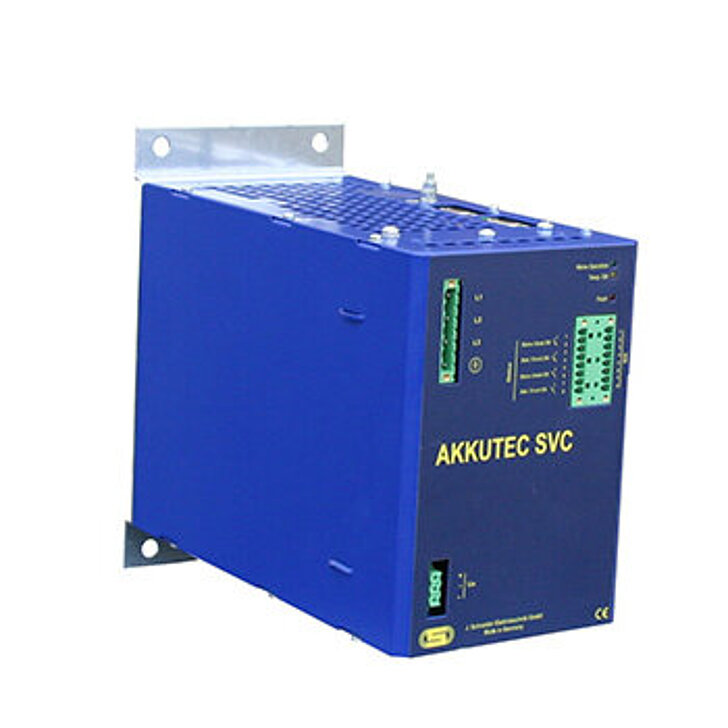

AKKUTEC SVC
- Great mechanical stability
- Wide operating temperature range
- Serial interface connections for connecting a PC (RS485) (for data exchange, parameterisation, service functions, remote monitoring, etc.) and for further connection to other AKKUTECs
- Special interference immunity
- Integration in SPS via RS485 or signalling contacts possible
- Battery monitoring
- Potential-free relay alarm contacts
- Potential-free open-collector signal outputs
Art.-no. : NCPA0936G20xxx
