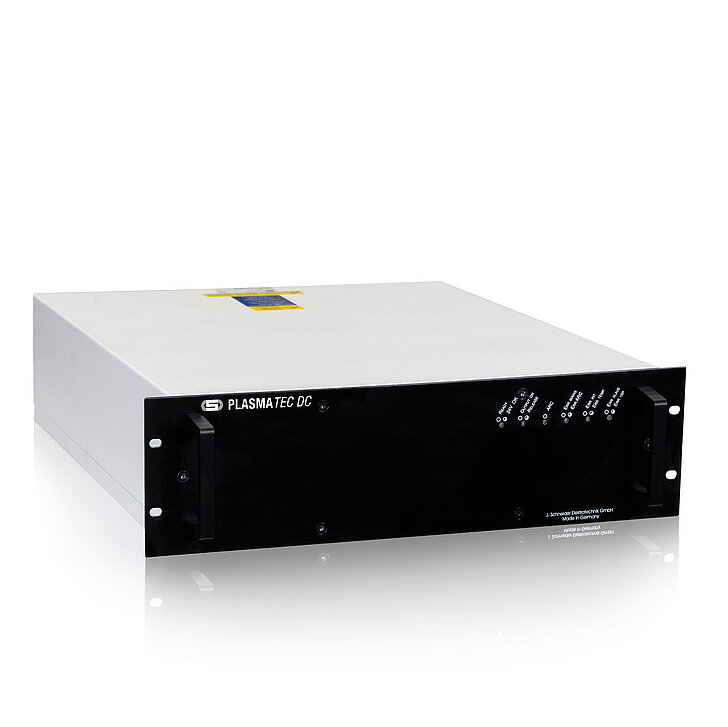

PLASMATEC DC

optimized for defect-free processing for state of the art thin film technologies

compact design: up to 20 kW in 3 HU

water-cooled

Arc management configurable

Micro arc suppression

Art.-no. : PLASMATEC DC***

IDEAL FOR DECORATIVE OR FUNCTIONAL COATING

The PLASMATECDC is a switch-mode DC power supply for PVD. Due to the CFC (Current Fed Converter) technology the output is a true current source, the most sophisticated solution for defect-free plasma processing. The device delivers DC output current / voltage. It is available with 5, 1O or 2O kW. In parallel mode the power can increase up to 200 kW. Digital regulation of current, voltage and power reaches most accurate values. The PLASMATEC DC provides high power density and great robustness, extremely low stored output energy and a sophisticated, flexible, adjustable arc management.

Our PLASMATEC DC series

Adjustable output voltage 0 - 800 V

Article number NDCR2014F01001
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 10 A
Output
adjustable output voltage 0 – 800 V
max. output voltage (at max. power) [Vav] 400 – 800 V
Nominal output power [kW] 5 kW
Nominal output current [Aav] 12.5 – 6.25 A
Max. ignition voltage [Vig] 1400
Article number NDCR2016F01001
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 20 A
Output
Adjustable output voltage 0 – 800 V
Adjustable output voltage (at max. power) [Vav] 400 – 800 V
Nominal output power [kW] 10 kW
Nominal output current [Aav] 25 – 12.5 A
Max. ignition voltage [Vig] 1400
Article number NDCR2018F01001
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 40 A
Output
Adjustable output voltage 0 – 800 V
Nominal output voltage (at max.power) [Vav] 400 – 800 V
Nominal output power [kW] 20 kW
Nominal output current [Aav] 50 – 25 A
Max. ignition voltage [Vig] 1400

Adjustable output voltage 0 - 1000 V

Article number NDCR2014F01002
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 10 A
Output
Adjustable output voltage 0 – 1000 V
Nominal output voltage (at max.power) [Vav] 400 – 1000 V
Nominal output power [kW] 5 kW
Nominal output current [Aav] 12,5 – 5 A
Max. ignition voltage [Vig] 1400
Article number NDCR2016F01002
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 20 A
Output
Adjustable output voltage 0 – 1000 V
Nominal output voltage (at max.power) [Vav] 400 – 1000 V
Nominal output power [kW] 10 kW
Nominal output current [Aav] 25 – 10 A
Max. ignition voltage [Vig] 1400
Article number NDCR2018F01002
Input
Input voltage 400 V AC +/- 10 %
Nominal frequency 50 / 60 Hz
Max. input current 40 A
Output
Adjustable output voltage 0 – 1000 V
Nominal output voltage (at max.power) [Vav] 400 – 1000 V
Nominal output power [kW] 20 kW
Nominal output current [Aav] 50 – 20 A
Max. ignition voltage [Vig] 1400

General Technical Data

Connection in parallel up to 10 units
Synchronization up to 20 units
Interfaces I/O interface / RS232 interface
  more interfaces as option possible
Dimensions (H x W x D) 133.35 x 482.6 x 600 (725 inklusive Stecker) mm
  3HU x 19” x 600 mm

Back view

5 kW and 10 kW

20 kW

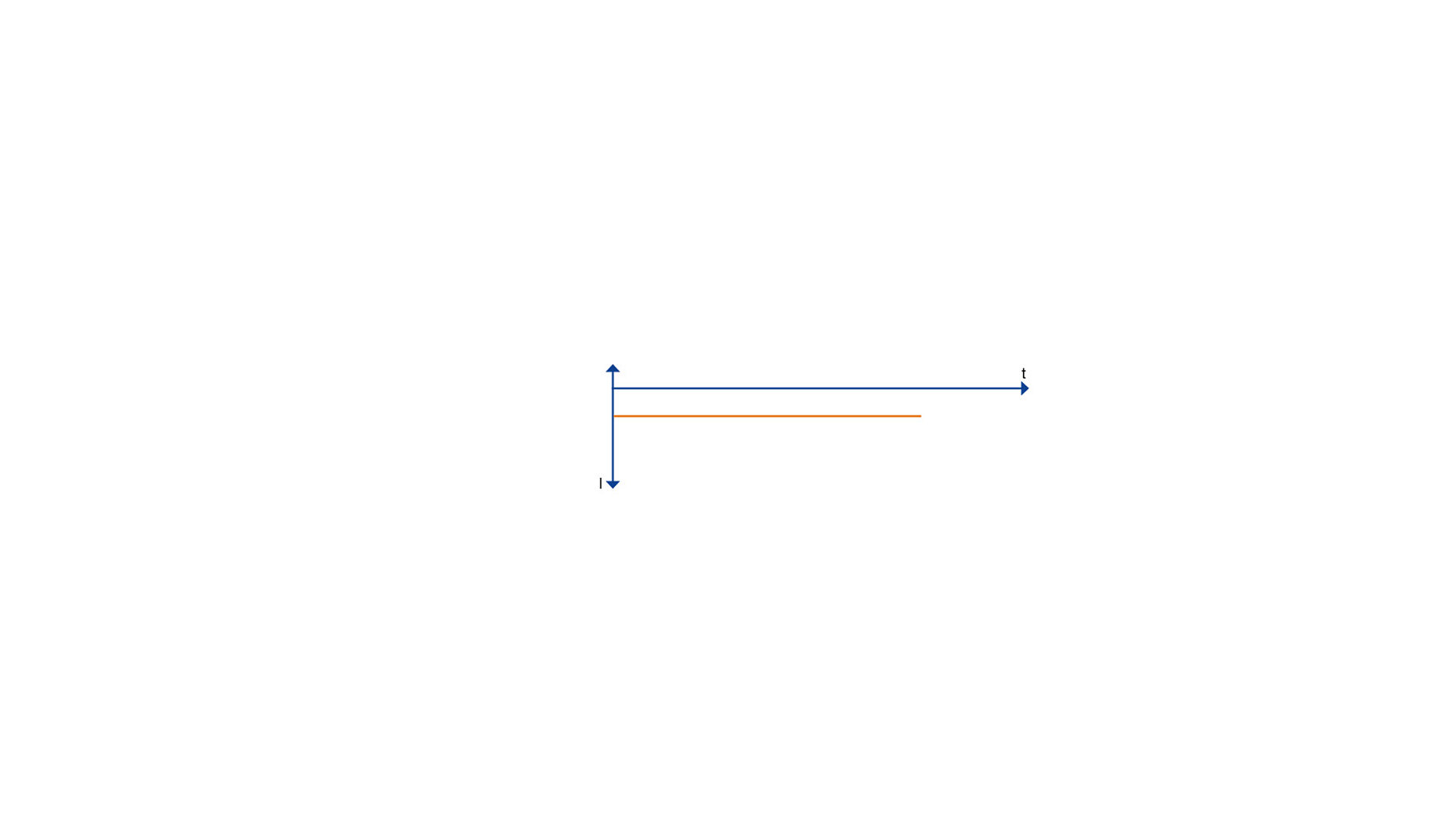

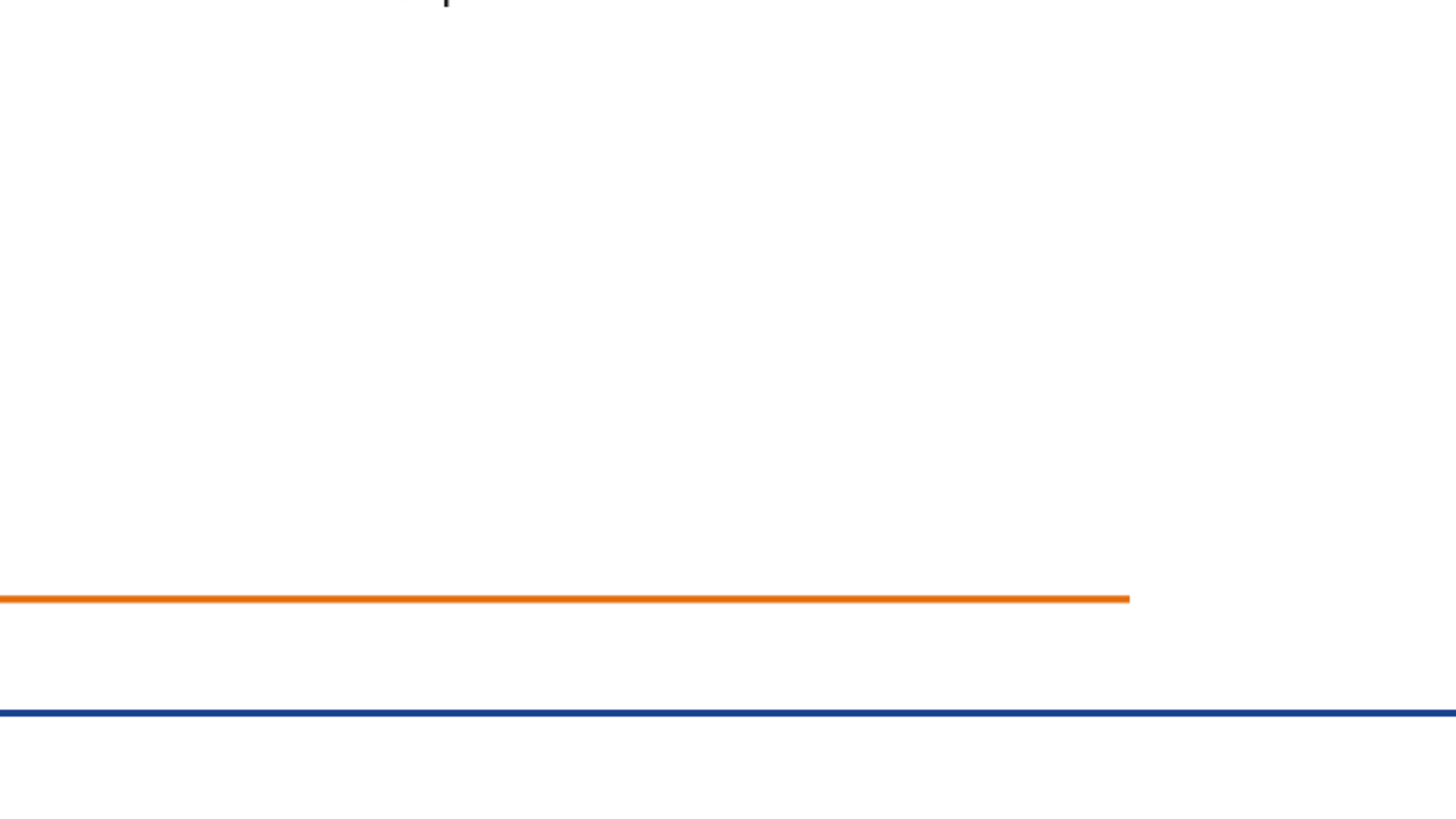

Output
