“CLOSE TO DROPLET-FREE” ARC PROCESSING
The PLASMATEC ARC is a high power switch-mode power supply product line. The proven CFC (Current Fed Converter) technology makes it a true current source.

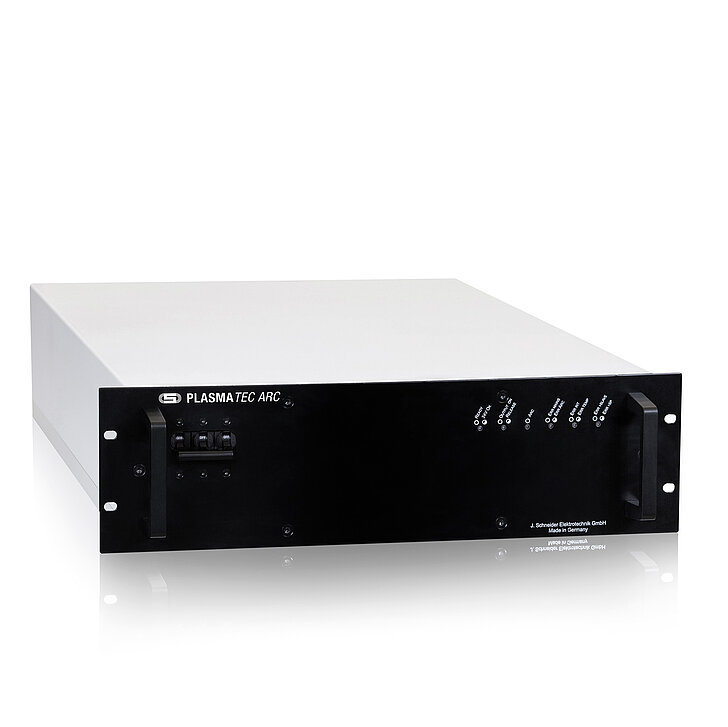

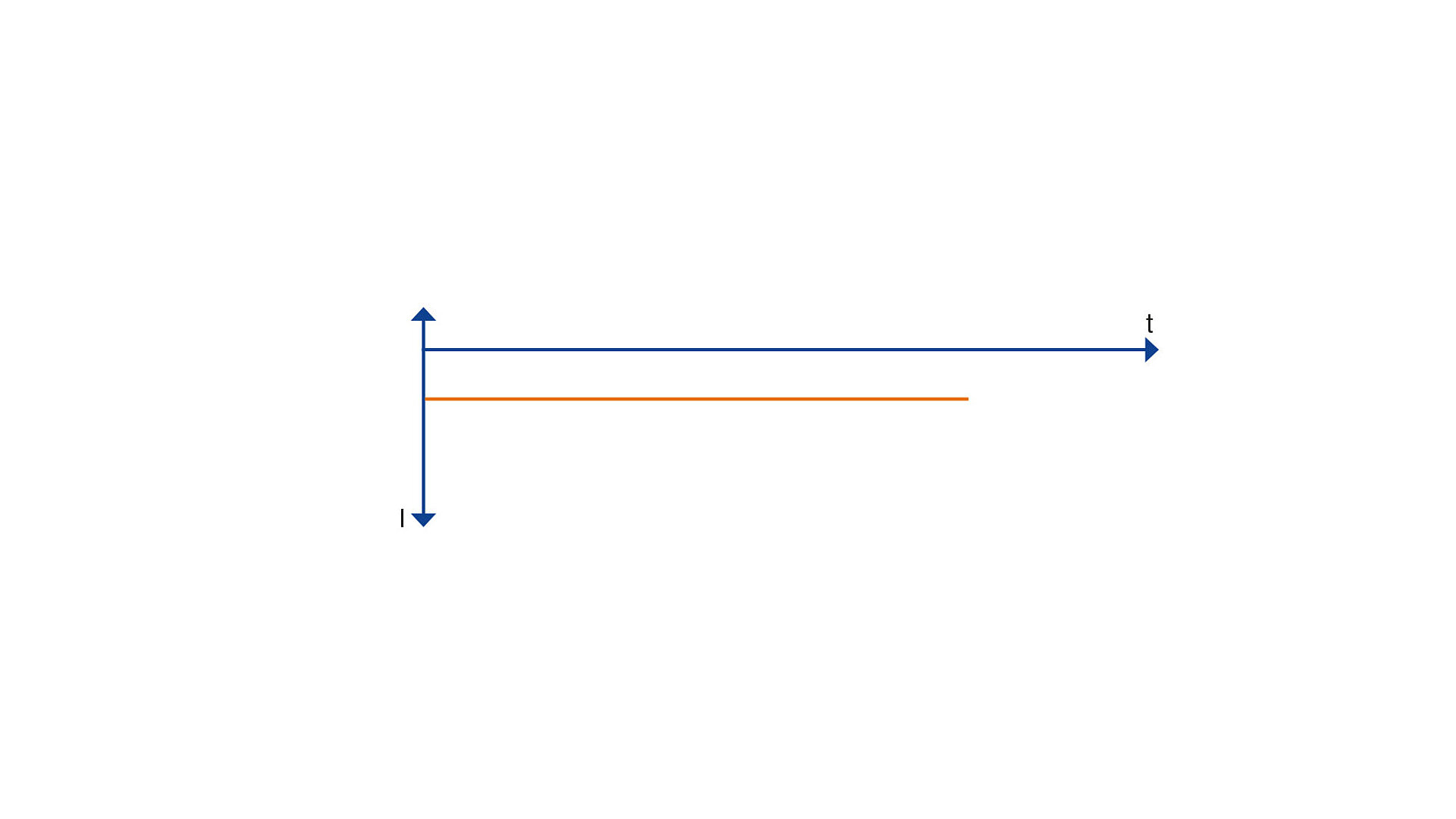

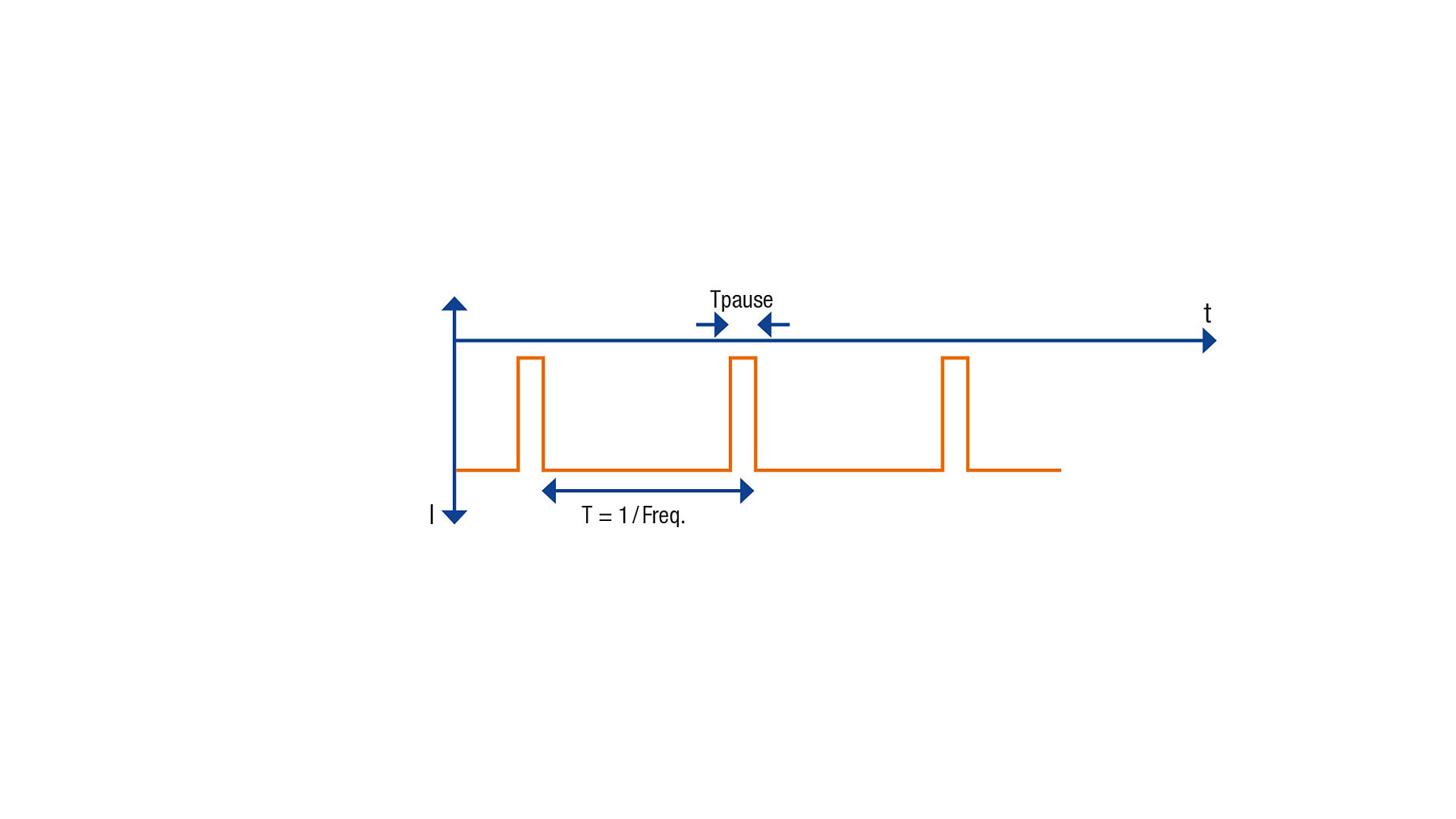

The PLASMATEC ARC series is specially designed for “close to droplet-free” pulsed cathodic arc processes. The devices provide either straight DC or pulsed DC output current. In pulsed operation the base current, the peak current and also the duty cycle can be set in a wide range: 1 to 99 % and the frequency 1 to 250 Hz.
Our PLASMATEC ARC series
PLASMATEC ARC 030200 [6kW]
| Article number | NACR1436F01001 |
|---|---|
| Input | |
| Input voltage | 3 x 400 V AC +/- 10 % |
| Nominal frequency | 50 / 60 Hz +/- 5 % |
| Max. input current | 25 A |
| OUTPUT DC MODE | |
| Nominal output voltage [Vav] | 30 V DC (60 V offenen Spannung) |
| Nominal output power [kW] | 6 kW @ 30 V |
| Nominal output current [Aav] | 200 A |
| OUTPUT PULSED MODE | |
| Nominal output voltage [Vav] | 30 V DC (60 V offenen Spannung) |
| Nominal output power [kW] | 6 kW |
| Nominal output base current [Aav] | 0 - 200 A |
| Nominal output peak current [Aav] | base current - 200 A |
| Max. ignition voltage [Vig] | 60 V (depending on mains input voltage) |
| Pulsing frequency | DC, 1 Hz to 250 Hz |
| Duty cycle = Tp | 1 % to 99 % |
| Minimum pulse length | 500 μsec |
PLASMATEC ARC 030400 [12 kW]
| Article number | NACR1437F01001 |
|---|---|
| Input | |
| Input voltage | 3 x 400 V AC +/- 10 % |
| Nominal frequency | 50 / 60 Hz +/- 5 % |
| Max. input current | 25 A |
| OUTPUT DC MODE | |
| Nominal output voltage [Vav] | 30 V DC (60 V open voltage) |
| Nominal output power [kW] | 12 kW @ 30 V |
| Nominal output current [Aav] | 400 A |
| OUTPUT PULSED MODE | |
| Nominal output voltage [Vav] | 30 V DC (60 V offenen Spannung) |
| Nominal output power [kW] | 12 kW |
| Nominal output base current [Aav] | 0 - 400 A |
| Nominal output peak current [Aav] | base current - 400 A |
| Max. ignition voltage [Vig] | 60 V (depending on mains input voltage) |
| Pulsing frequency | DC, 1 Hz to 250 Hz |
| Duty cycle = Tp | 1 % to 99 % |
| Minimum pulse length | 500 μsec |
PLASMATEC ARC 080200 [16 kW]
| Article number | NACR1439F01001 |
|---|---|
| Input | |
| Input voltage | 3 x 400 V AC +/- 10 % |
| Nominal frequency | 50 / 60 Hz +/- 5 % |
| Max. input current | 30 A |
| OUTPUT DC MODE | |
| Nominal output voltage [Vav] | 80 V DC (140 V offenen Spannung) |
| Nominal output power [kW] | 16 kW @ 80 V |
| Nominal output current [Aav] | 200 A |
| OUTPUT PULSED MODE | |
| Nominal output voltage [Vav] | 80 V DC (140 V open voltage) |
| Nominal output power [kW] | 16 kW |
| Nominal output current [Aav] | 0 - 200 A |
| Nominal output peak current [Aav] | base current – 200 A |
| Max. ignition voltage [Vig] | 140 V |
| Pulsing frequency | DC, 1 Hz to 250 Hz |
| Duty cycle = Tp | 1 % to 99 % |
| Minimum pulse length | 500 μsec |
General Technical Data
| Interfaces | I/O interface / RS232 interface |
| more interface see page options | |
| Dimensions (H x W x D) | 133.35 x 482.6 x 600 (725 inklusive Stecker) mm |
| 3HU x 19” x 600 mm |

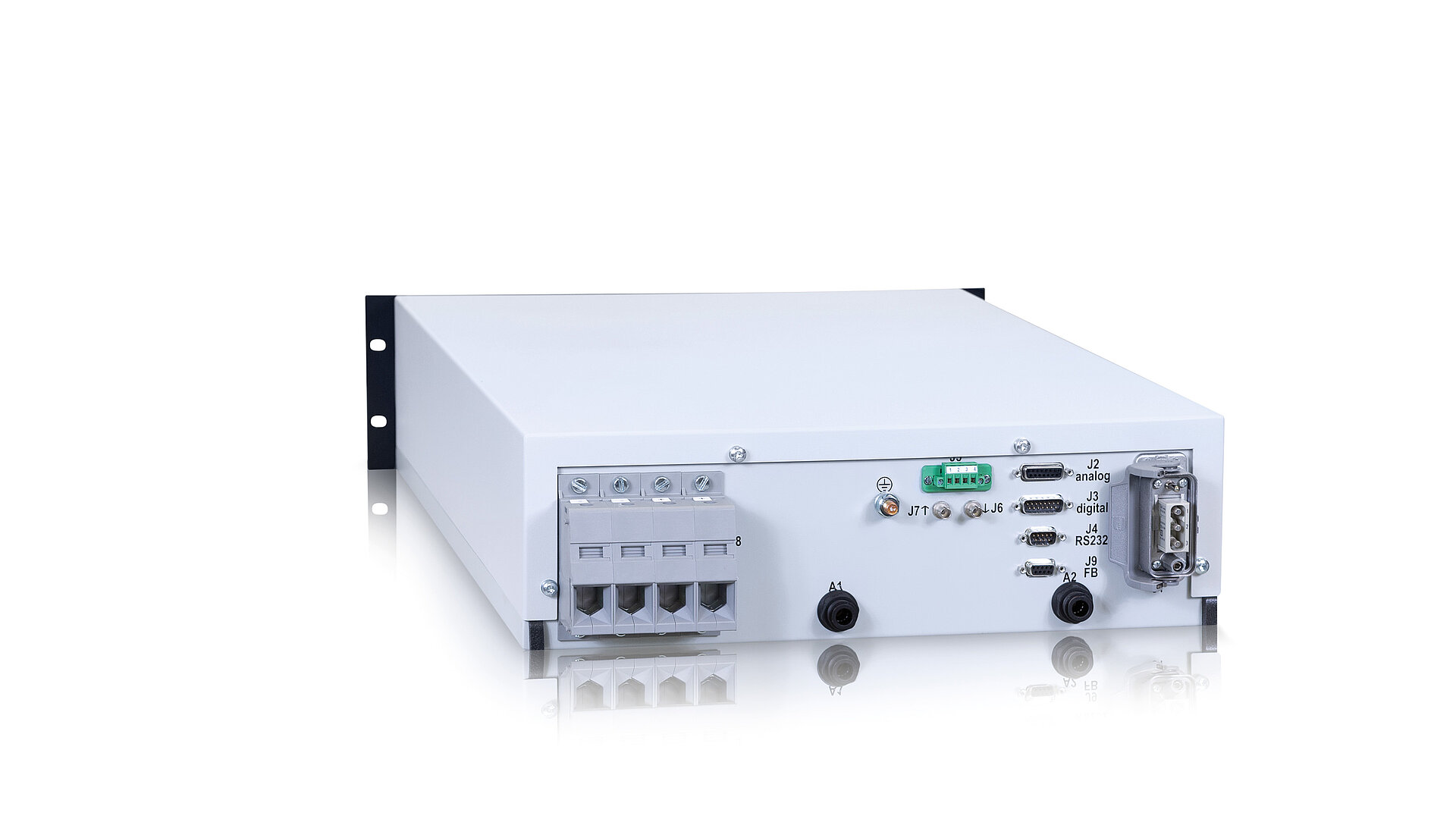

Back side
Output
