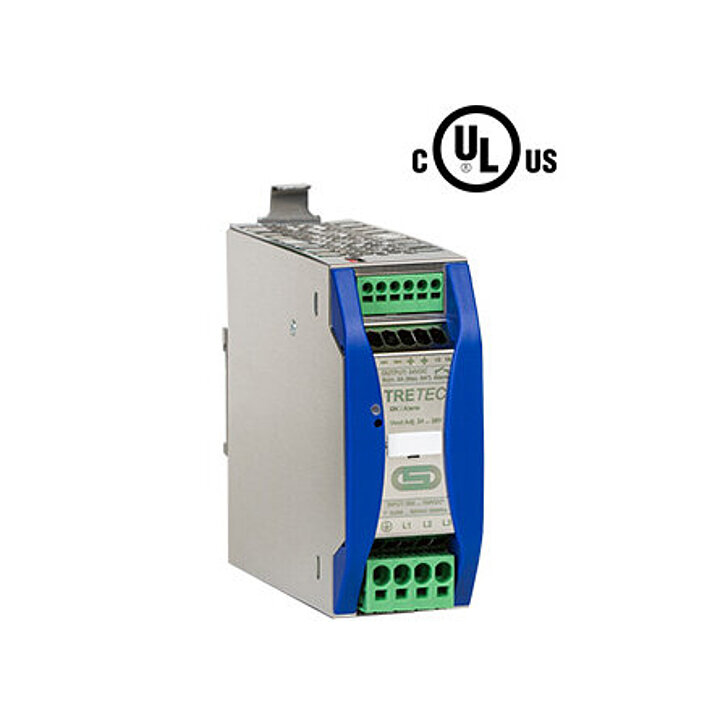

TRETEC 2406 N

Peak current from 6 A to 45°C ambient temperature

Efficiency up to 95% over the entire load range

150% Power Boos for 5 seconds

Metal housing with optimal EMC properties

Parallel mode to increase performance

Signaling contact for overvoltage, short circuit and temperature

LED display operating status



Art.-no. : NFPG1529G01001

Technical Data

Nominal input voltage 3 x 360 V … 500 VAC ± 10% / 500 V … 700 VDC ± 10%
Nominal frequency 50 ... 60 Hz ± 6 %
Nominal output voltage 24 V DC ± 1 %
Nominal current max. 45°C 6,0 A … 5,1 A / 24…28VDC
Nominal current max. 60°C 5,0 A … 4,3 A / 24…28VDC
Nominal current max. 70°C 3,7 A … 3,2 A / 24…28VDC
UL approval UL 508 / C22.2
