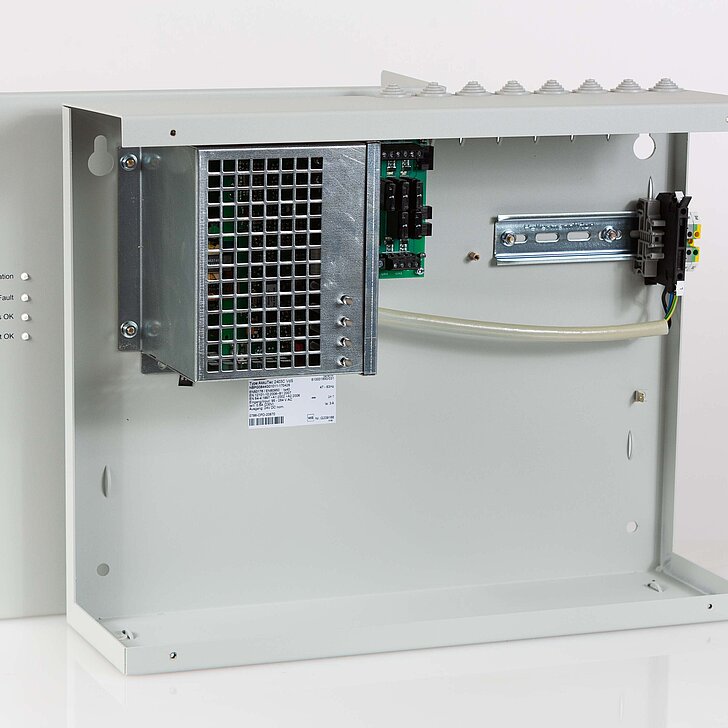

DC UPS system in cabinet for wall mounting without battery


Primary switched-mode power supply with I/U charging characteristics

active power factor correction (PFC)

Microcontroller-supported battery management

Temperature tracking of the charging voltage

Battery test via internal battery resistance measurement

Art.-no. : NBPG0844G01011

Technical Data

input voltage 110/230 V AC (±15%)
mains frequency 47…63 Hz
nominal output voltage / current 24 V DC / 3 A
protective system housing IP 31
dimensions (H x W x D) 362 x 464 x 145 mm
weight 7,5 kg without battery
