The DC-buffer module C-TEC works with Ultra-capacitors as energy storage inside the housing. In case of an interruption of the DC-supply, the energy of the Ultracapacitors is released. The load is energised from the buffer module, til it is discharged. The back-up time depends on the state of charge of the capacitors and on the discharge current.
Devices with an interface are programmable via Software (paraTEC).
For the IPC operation is a shutdown software (TECControl) available.
Due to discontinued components and improvements within the scope of the CIP, the key data of various units have been improved.
Due to the change of the safety standard(s):
EN 60950-1 in
EN 62368-1 respectively EN 61010-1 and EN 61010-2-201
we were forced to change the type designations. (The article number remains the same)
The changes affect the following units:
Art.-No. | Old Designation | New Designation |
NCPA0609G01002 | C-TEC 2410-1 | C-TEC 2410 2 kJ |
NCPA0608G01001 | C-TEC 2405-5 | C-TEC 2410 5,8kJ |
NCPA0606G01001 | C-TEC 2410-10 | C-TEC 2410 13,4 kJ |
NCPA0607G01001 | C-TEC 2408-20 | C-TEC 2410 27,6 kJ |
The units are mechanically and electrically 100 % compatible.
The efficiency has improved and the buffer time has been significantly extended in some cases.

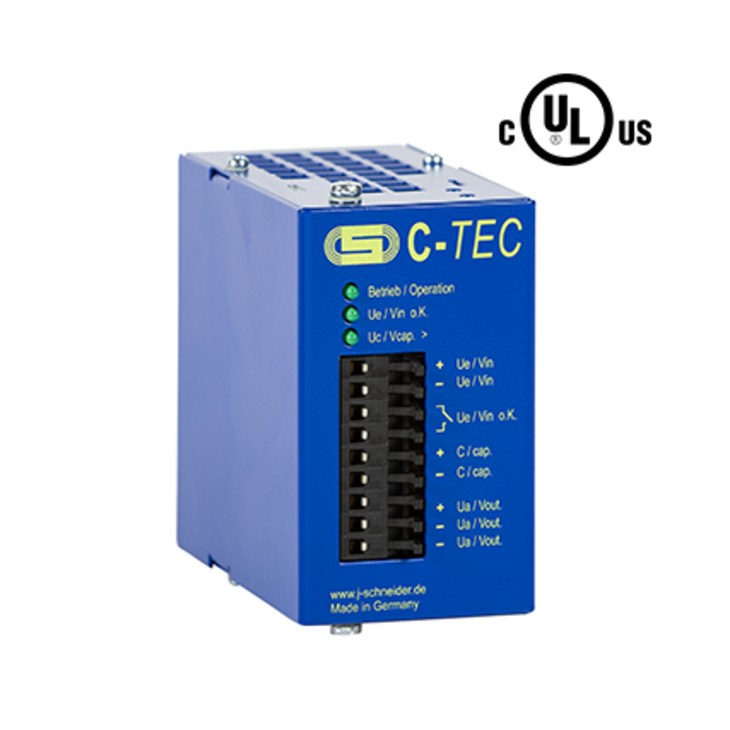

C-TEC | 1203 | 2403 | 2403 USB | 2403K | 2403-1of |
---|---|---|---|---|---|
UL-certification | ![]() | ||||
![]() | |||||
input voltage | 12 V DC | 24 V DC | 24 V DC | 24 V DC | 24 V DC |
output voltage | 11,75 V DC | 24 V DC | 24 V DC | 24 V DC | 24 V DC |
Output current/energy | 3 A / 500 J or 3 A / 1 kJ | 3 A / 500 J or 3 A / 1 kJ | 2,6 A / 1 kJ | 3 A / 1 kJ | 3 A / 1 kJ |
C-TEC 2410 2kJ | C-TEC 2410 5,8kJ | C-TEC 2410 13,4kJ | C-TEC 2410 27,6 kJ | C-TEC 2420-8 | |
---|---|---|---|---|---|
UL-certification | ![]() | ![]() | ![]() | ![]() | ![]() |
|
|
| |||
input voltage | 12 V / 24 V DC | 12 V / 24 V DC | 12 V / 24 V DC | 12 V / 24 V DC | 24 V DC |
output voltage | 12 V / 24 V DC | 12 V / 24 V DC | 12 V / 24 V DC | 12 V / 24 V DC | 24 V DC |
output current/energy | 10 A / 2 kJ | 10 A / 5,8 kJ | 10 A / 13,4 kJ | 10 A / 27,6 kJ | 20 A / 8 kJ |
C-TEC 1225 P | C-TEC 2425 P | C-TEC 2440 P | C-TEC 4815 P | |
---|---|---|---|---|
UL-certification | ![]() | ![]() | ||
|
|
|
| |
input voltage | 12 V DC | 24 V DC | 24 V DC | 48 V DC |
output voltage | 12 V DC | 24 V DC | 24 V DC | 48 V DC |
output current/energy | 25 A / 0,5 kJ | 25 A / 1,4 kJ | 40 A / 4 kJ | 15 A / 1,0 kJ |
AC-C-TEC | 1203-05 | 1203-1 | CAPTEC 2401 | 2403-05 | 2403-1 | 2403-1-400 | 2410-10 | 2420-8 |
![]() | ![]() | ![]() | ![]() | ![]() | ||||
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ||
input voltage | 115-230 V AC | 115-230 V AC | 115-230 V AC | 115-230 V AC | 115-230 V AC | 400 V AC | 100 - 240 V AC | 400 V AC |
output voltage | 12 V | 12 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V |
output current /energy | 3A / 0,5 kJ | 3A / 1 kJ | 1,3 A / 0,6 kJ | 3 A / 0,5 kJ | 3 A / 1 kJ | 3 A / 1 kJ | 10 A / 10 kJ | 20 A / 8 kJ |
CEM 24-1 | CEM 24-2 | CEM 24-8 | CEM 24-16 | CEM 12-1 | CEM 12-2 | |
---|---|---|---|---|---|---|
UL-certification | ![]() | ![]() | ||||
voltage v | 24 V DC | 24 V DC | 24 V DC | 24 V DC | 12 V DC | 12 V DC |
energy kJ | 1 kJ | 2 kJ | 8 kJ | 16 kJ | 1 kJ | 2 kJ |
current A | 3 A | 3 A | 20 A | 20 A | 3 A | 3 A |
compact design, assembled in one housing
maintenance-free
deep discharge protection, thus unlimited storage possible
no gas emission, so the use in closed housings is possible
fast availability because of short recharge time after discharge
Compared with normally used buffer modules with capacitors, higher back-up times can be obtained with the C-TEC.
They can be .
back-up time = energy
voltage x current
with full load capacitors:
50 s = 12000_____
24 V x 10 A
